IT Hardware - 3D PRINTING - S Series - S3

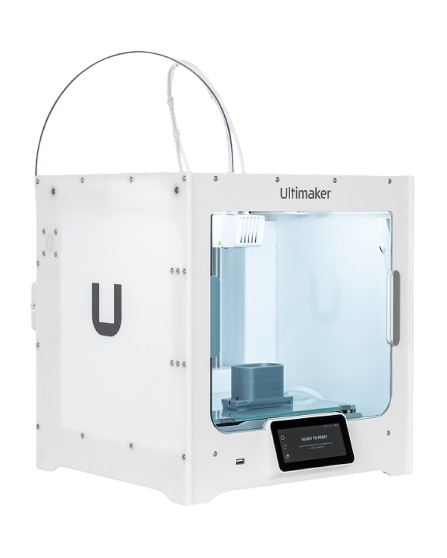

UltiMaker S3

Pengalaman 3D Printing yang Intuitif Dimulai di Sini.

Menggabungkan performa tinggi dan fleksibilitas desain dalam satu platform desktop. Mendukung material komposit canggih serta support yang dapat larut untuk menghasilkan komponen kompleks dengan kualitas profesional

Dual Extrusion Technology Professional-Grade Print Quality Smart Connected Workflow Wide Material Compatibility
Ilustrasi Multimedia dan Smart Collaboration SKI

Performa Tinggi. Desain yang Ringkas.

Fitur Utama

Sistem Dual Extrusion untuk Fleksibilitas Material yang Lebih Luas

Kalibrasi Otomatis Presisi Tinggi

Antarmuka Layar Sentuh yang Intuitif dan Responsif

Ekosistem Material Profesional dengan 190+ Pilihan Material

Dimensions
Build volume
230 x 190 x 200 mm (9 x 7.4 x 7.9 inches)
Assembled dimensions
W 394 x D 489 x H 637 mm (W 15.5 x D 19.3 x H 25.1 inches)
Print technology
Fused Deposition Modeling (FDM)
Compatible filament diameter
2.85 mm
Weight
14.4 kg (31.7 lbs)
Maximum power output
350 W
Printer Properties
Layer resolution
0.25 mm nozzle: 150 - 60 micron  |  0.4 mm nozzle: 200 - 20 micron  |  0.6 mm nozzle: 300 - 20 micron  |  0.8 mm nozzle: 600 - 20 micron
XYZ resolution
6.9, 6.9, 2.5 micron
Feeder type
Dual-geared feeder, reinforced for composite materials
Display
4.7-inch (11.9 cm) color touchscreen
Print core replacement
Swappable print cores
Print head
Dual extrusion print head with an auto-nozzle lifting system, swappable print cores.
Nozzle diameters
0.25 mm, 0.4 mm, 0.6 mm, 0.8 mm
Operation Diameters
Build Speed
< 24 mm³/s
Nozzle temperatur
180 - 280 °C
Nozzle heat-up time
< 2 minutes
Operating Sound
< 50 dBA
Build plate leveling
Advanced active leveling
Build plate
20 - 140 °C heated glass build plate
Build plate heat-up time
< 4 minutes (from 20 to 60 °C)
Operating ambient temperature
15 - 32 °C (59 - 90 °F)
Non-operating temperature
0 - 32 °C (32 - 90 °F)
Ecosystem
Supplied free software
UltiMaker Cura – print preparation software UltiMaker Digital Factory – printer management software UltiMaker Essentials – enterprise-grade online software tools
Supported OS
MacOS, Windows, and Linux
Plugin integration
SolidWorks, Siemens NX, Autodesk Inventor
Supported file types
UltiMaker Cura: STL, OBJ, X3D, 3MF, BMP, GIF, JPG, PNG Printable formats: G, GCODE, GCODE.gz, UFP
File Transfer
Wi-Fi (2.4 GHz), Ethernet, USB
Safety and Compliance
Certification
CE, FCC, VPAT, RoHS, REACH, CB, BIS, KC, PSE, RCM, SRRC, MIC, NCC, Safe unattended professional use
More information
Learn more about UltiMaker safety and compliance (https://support.makerbot.com/s/article/1667337922159)

Didukung oleh lebih dari 190 material tervalidasi untuk berbagai kebutuhan industri, teknik, dan pengembangan produk, termasuk :

Tough PLA

Tough PLA

Print Core AA
Hardness 80 Shore D
Thermal resistance 58°C
Impact strength 9 kJ/m²
PLA

PLA

Print Core AA
Hardness 84
Thermal resistance 59°C
Impact strength 4 kJ/m²
PETG

PETG

Print core AA
Hardness 76 Shore D
Thermal resistance 76°C
Impact strength 8 kJ/m²
ABS

ABS

Print Core 1AA
Hardness 76 Shore D
Thermal resistance 87°C
Impact strength 14 kJ/m²
CPE

CPE

Print Core AA
Hardness 76 Shore D
Thermal resistance 77°C
Impact strength 6 kJ/m²
CPE+

CPE+

Print Core AA
Hardness 77 Shore D
Thermal resistance 100°C
Impact strength 37 kJ/m²
Nylon

Nylon

Print Core AA
Hardness 80 Shore D
Thermal resistance 89°C
Impact strength 14 kJ/m²
PC

PC

Print Core AA
Hardness 81 Shore D
Thermal resistance 111°C
Impact strength 12 kJ/m²
TPU 95A

TPU 95A

Print Core AA
Hardness 48 Shore D
Thermal resistance 116°C
Impact strength 24 kJ/m² Shore D
PP

PP

Print Core AA
Hardness 42 Shore D
Thermal resistance 99°C
Impact strength 49 kJ/m²

Siap Memulai dengan 3D Printing?

Konsultasikan kebutuhan Anda dengan tim ahli SKI. Kami siap memberikan demo langsung, rekomendasi produk, dan penawaran terbaik untuk organisasi Anda.

Hubungi Kami
